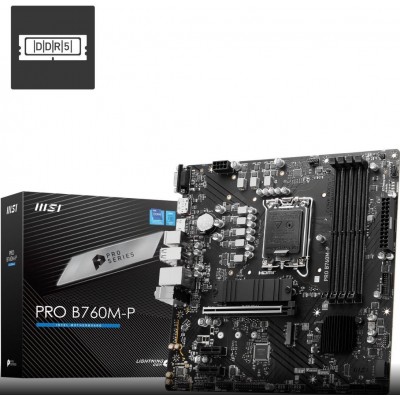

MSI B760MPD5 LGA1700 (DDR5) Motherboard, New
- Brand: msi
- Product ID: MB-MSI-B760MPD5
- Availability: In Stock
MSI B760MPD5 LGA1700 4*DDR5 slot Motherboard, New
| Brand | MSI |
|---|---|
| Model | PRO B760M-P |
| Part Number | PRO B760M-P |
| CPU Socket Type | LGA 1700 |
|---|---|
| CPU Type | Core / Pentium / Celeron (12th Gen, LGA1700) / Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) / Intel Core 14th Gen (LGA 1700) |
| Chipset | Intel B760 |
|---|
| Number of Memory Slots | 4x288pin (DDR5) |
|---|---|
| Memory Standard | Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 6800+ MHz • 1DPC 2R Max speed up to 6400+ MHz • 2DPC 1R Max speed up to 6000+ MHz • 2DPC 2R Max speed up to 5600+ MHz |
| Maximum Memory Supported | 256GB |
| Channel Supported | Dual Channel |
| PCI Express 4.0 x16 | 1 x PCI Express 4.0 x16 |
|---|---|
| PCI Express x1 | 2x PCIe 4.0 x1 slots |
| Serial ATA (SATA) | * SATA5 will be unavailable when installing M.2 SATA SSD in the M2_2 slot. |
|---|---|
| M.2 | M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices |
| Audio Chipset | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
|---|
| LAN Chipset | Realtek® RTL8111H Gigabit LAN |
|---|
| Back I/O Ports | 1 x DisplayPort / 1 x HDMI / 1 x LAN (RJ45) / 1 x USB 3.2 Gen 1 Type-A / 1 x USB 3.2 Gen 2 Type-C / 3 x Audio Jacks / 4 x USB 2.0/1.1 |
|---|---|
| PS/2 | 1 x PS/2 keyboard/mouse port |
| Video Ports | 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| HDMI | 1x HDMI™ Support HDMI™ 1.4, maximum resolution of 4K 30Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| RJ45 | 1 x RJ45 |
| DisplayPort | 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* |
| USB 1.1/2.0 | 4 x USB 2.0 |
| USB Type-C | 1 x USB Type-C® port, with USB 3.2 Gen 2 support |
| Audio Ports | 3 Ports |
| Onboard USB | 2 x USB 3.1 + 4 x USB 2.0 |
|---|---|
| Other Connectors | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Printer Port (JLPT) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) |
| All | |
| Condition | Brand New |
| Packing | Retail Pack |
| Warranty | QS: N/A; MSI: 1 Year |
