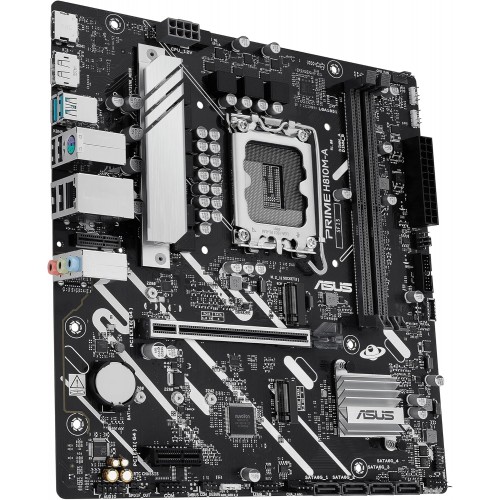

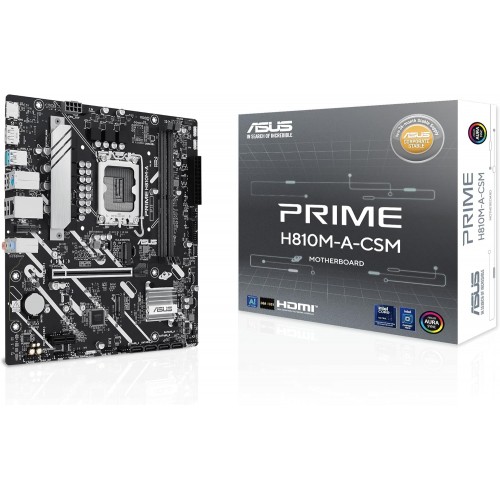

Asus Prime H810M-A-CSM LGA1851 DDR5 Motherboard, New
- Brand: ASUS
- Product ID: MB-ASUS-H810MA-CSM
- Availability: In Stock
Asus Prime H810M-A-CSM LGA1851 DDR5 Motherboard, New
| Brand | ASUS |
|---|---|
| Model | PRIME H810M-A CSM |
| Part Number | 90MB1KK0-M0AAYC |
| CPU Socket Type | LGA 1851 |
|---|---|
| CPU Type | Intel Core Ultra Processors (Series 2) |
| Chipset | Intel H810 |
|---|
| Number of Memory Slots | 2x288pin (DDR5) |
|---|---|
| Memory Standard | DDR5 4400 / DDR5 4800 / DDR5 5000 / DDR5 5200 / DDR5 5400 / DDR5 5600 / DDR5 5800 / DDR5 6000 / DDR5 6200 / DDR5 6400 |
| Maximum Memory Supported | 96GB |
| Channel Supported | Dual Channel |
| Memory Feature | Dual channel memory architecture DIMM Fit Supports Intel Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile II (AEMP II) |
| PCI Express 4.0 x16 | Intel Core Ultra Processors (Series 2) 1 x PCIe 4.0 x16 slot |
|---|---|
| PCI Express x1 | Intel H810 Chipset 1 x PCIe 4.0 x1 slot |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
|---|---|
| M.2 | Intel H810 Chipset M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode) |
| Audio Channels | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
|---|
| Max LAN Speed | 1Gbps |
|---|
| Back I/O Ports | 2 x USB 10Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi module 1 x Intel 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 keyboard/mouse combo port |
|---|
| Onboard USB | 1 x USB 5Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports |
|---|---|
| Other Connectors | Fan and Cooling Related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Miscellaneous 3 x Addressable Gen2 headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin Front Panel System header |
| BIOS Feature | 256 (128+128) Mb Flash ROM, UEFI AMI BIOS |
|---|---|
| Software | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving ASUS DriverHub Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey |
| Windows 11 | Windows 11 (22H2 & later), Windows 10 64-bit (21H2 & later) |
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 8.75" |
| Power Pin | 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector |
| Features | ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage protection - SafeSlot Core+ - Stainless-steel back I/O ASUS Q-Design - Q-DIMM - Q-Dashboard - Q-LED Core - Q-Slot ASUS Thermal Solution - VRM heatsink design Aura Sync - Addressable Gen2 headers |
|---|

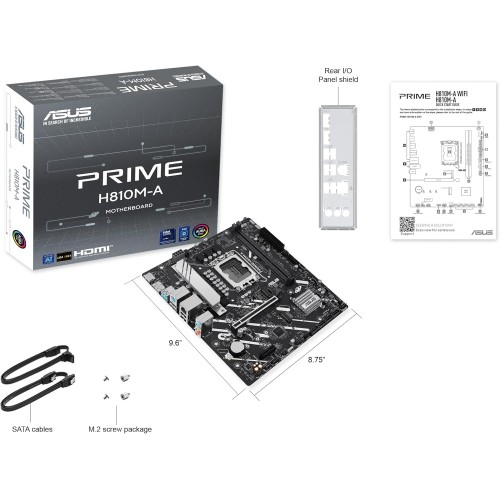

| Package Contents | Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antenna 1 x I/O shield 1 x Screw package for M.2 SSD Documentation 1 x Quick start guide |
|---|
| All | |
| Condition | Brand New |
| Packing | Retail Pack |
| Warranty | QS: N/A; Asus: 3 Years |
