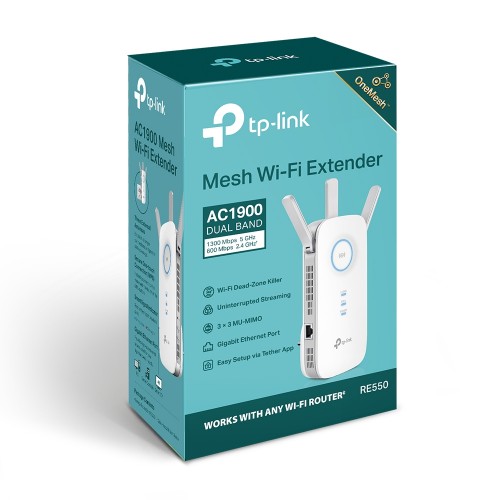

TP-Link RE550 AC1900 Wi-Fi Range Extender

Plug Type

EU, UK, US, AU, KR, JP

Standards and Protocols

IEEE802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

Interface

1 x 10/100/1000M Ethernet Port (RJ45)

Button

WPS Button, Reset Button, LED Button, Power Button

Power Consumption

10W（max power consumption）

Dimensions ( W x D x H )

6.4 x 3.0 x 2.6 in. (163 x 76.4 x 66.5mm)

Antenna

3 x external

Frequency

2.4GHz & 5GHz(11ac)

Signal Rate

5GHz:Up to 1300Mbps
2.4GHz:Up to 600Mpbs

Reception Sensitivity

5GHz：
11a 6Mbps:-93dBm@10% PER
11a 54Mbps: -76dBm@10% PER
11ac HT20 mcs8: -68dBm@10% PER
11ac HT40 mcs9: -64dBm@10% PER
11ac HT80 mcs9: -61dBm@10% PER
2.4GHz
11g 54M: -77dBm@10% PER
11n HT20 mcs7: -73dBm@10% PER
11n HT40 mcs7: -70dBm@10% PER

Wireless Modes

Range Extender/Access Point

Wireless Functions

Wireless Statistic
Concurrent Mode Boost Both 2.4G/5G WiFi Band
Access Control
LED Control
Domain Login Function
Wi-Fi Coverage

Wireless Security

64/128-bit WEP
WPA-PSK / WPA2-PSK

Transmission Power

<20dBm(2.4GHz)
<23dBm(5GHz)

Certification

CE, FCC, RoHS

Package Contents

AC1900 Wi-Fi Range Extender RE550
Quick Installation Guide

Box Dimensions (W X D X H)

7.9 x 4.9 x 3.4in. (202x 125 x 86mm)

System Requirements

Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac® OS, NetWare®, UNIX® or Linux.

Environment

Operating Temperature: 0°C~30°C (32°F~86°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
