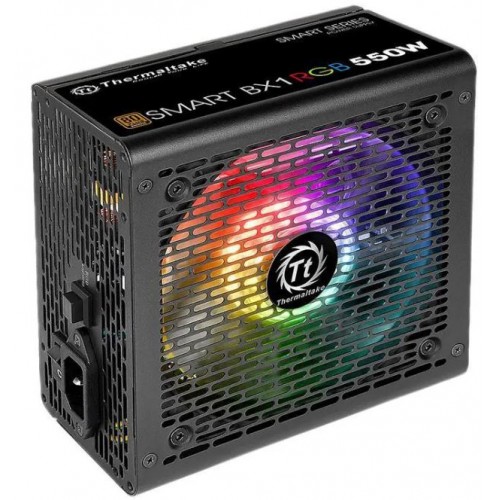

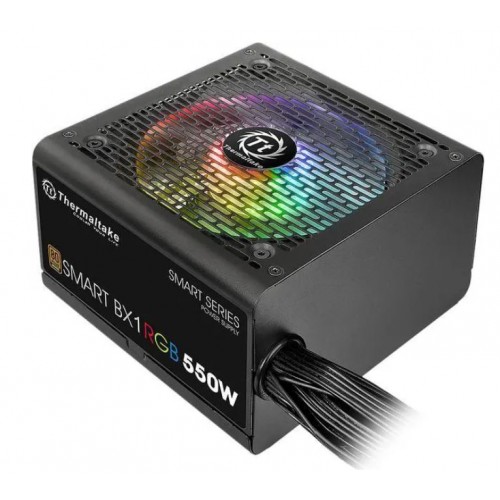

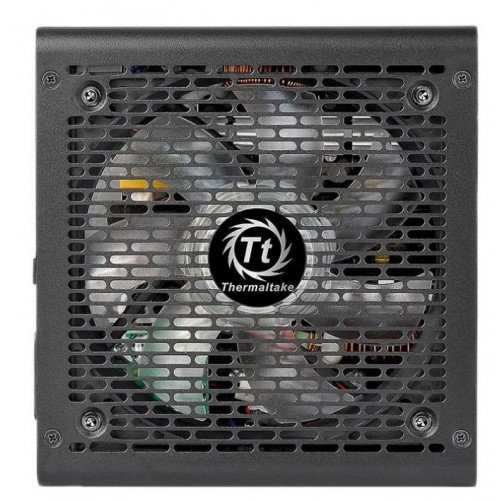

Thermaltake 550W Smart BX1 RGB 80+Bronze Non-modular ATX Power Supply (New)
- Brand: Thermaltake
- Product ID: PS-TT-SPR-0550NHFABU-1
- Availability: In Stock
Thermaltake 550W Smart BX1 RGB 80+ Bronze Non-modular ATX Power Supply (New)
| Brand | Thermaltake |
|---|---|
| Series | Smart BX1 RGB 550W |
| Model | PS-SPR-0550NHFABU-1 |
| Type | Intel ATX 12V v2.3 & EPS 12V v2.92 |
|---|---|
| Maximum Power | 550 W |
| Fans | 1 x 120mm 10 LED RGB Smart Fan |
| Fan LED | RGB |
| PFC | Active |
| Main Connector | 24Pin |
| +12V Rails | Single |
| PCI-Express Connector | 2 x 6+2-Pin |
| SATA Power Connector | 6 |
| SLI | SLI Ready |
| CrossFire | CrossFire Ready |
| Max PSU Length | 140 mm |
| Modular | Non-Modular |
| Efficiency | > 85% |
| Energy-Efficient | 80 PLUS BRONZE Certified |
| Over Voltage Protection | Yes |
| Input Voltage | 100 - 240 V |
| Input Frequency Range | 50/60 Hz |
| Input Current | 10 A |
| Output | +3.3V@21A, +5V@16A, +12V@38A, -12V@0.5A, +5VSB@2.5A |
| MTBF | >100,000 Hours |
| Approvals | CE / CB / TUV / UL / FCC / BSMI |
| Connectors | 1 x 24-pin ATX 1 x 4+4pin EPS 2 x 6+2 PCI-E 6 x SATA 4 x Peripheral 1 x Floppy |
| Features | Compliance with Intel ATX 12V v2.3 & EPS 12V v2.92 standards 80 PLUS BRONZE certified - 85% efficiency under typical load Single +12V rail Design offers 38A of power and includes (2x) PCI-E 6+2 power connectors Push Button RGB LED Control with 7 colors and 3 RGB LED Modes Non modular design with low profile black flat cables 105°C / 221°F High quality Main Japanese capacitors. Intel Skylake’s C6/C7 states & ErP ready Improvements in Ripple Noise and Extremely Strict Voltage Regulation provides exceptional steady clean power. |
|---|
| Dimensions | 3.39" x 5.51" x 5.91" |
|---|
| All | |
| Condition | Brand New |
| Packing | Retail Pack |
| Warranty | 1 Year |
